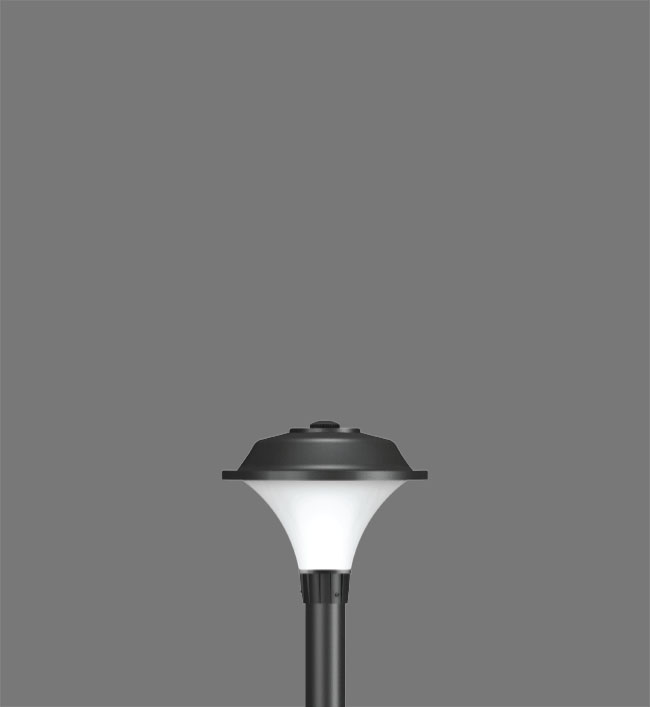

Conic
An elegant and efficient lantern featuring a translucent diffuser that delivers soft, comfortable illumination with symmetrical light distribution. Engineered with a robust, aesthetically refined construction, it is built to withstand harsh weather conditions while ensuring long-lasting durability.

Product Description
• The luminaire made of spun aluminium top cover.
• Lamp compartment encased in non-yellowing translucent UV stabilised acrylic diffuser.
• Luminaire integrated with 12W LED.
• Silicone gasket.
• Die cast aluminium base of low copper content for effective corrosion resistance.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-21796-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• Elegant, Robust design
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.

Area of Application

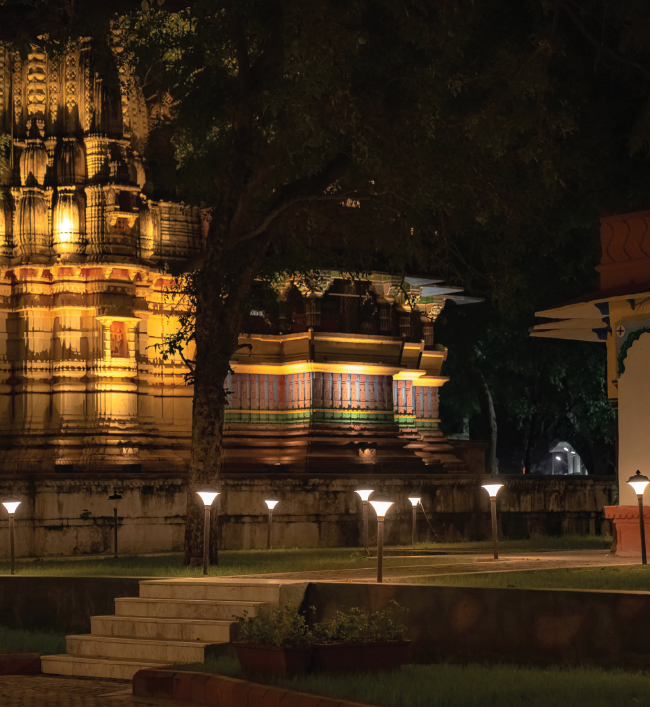

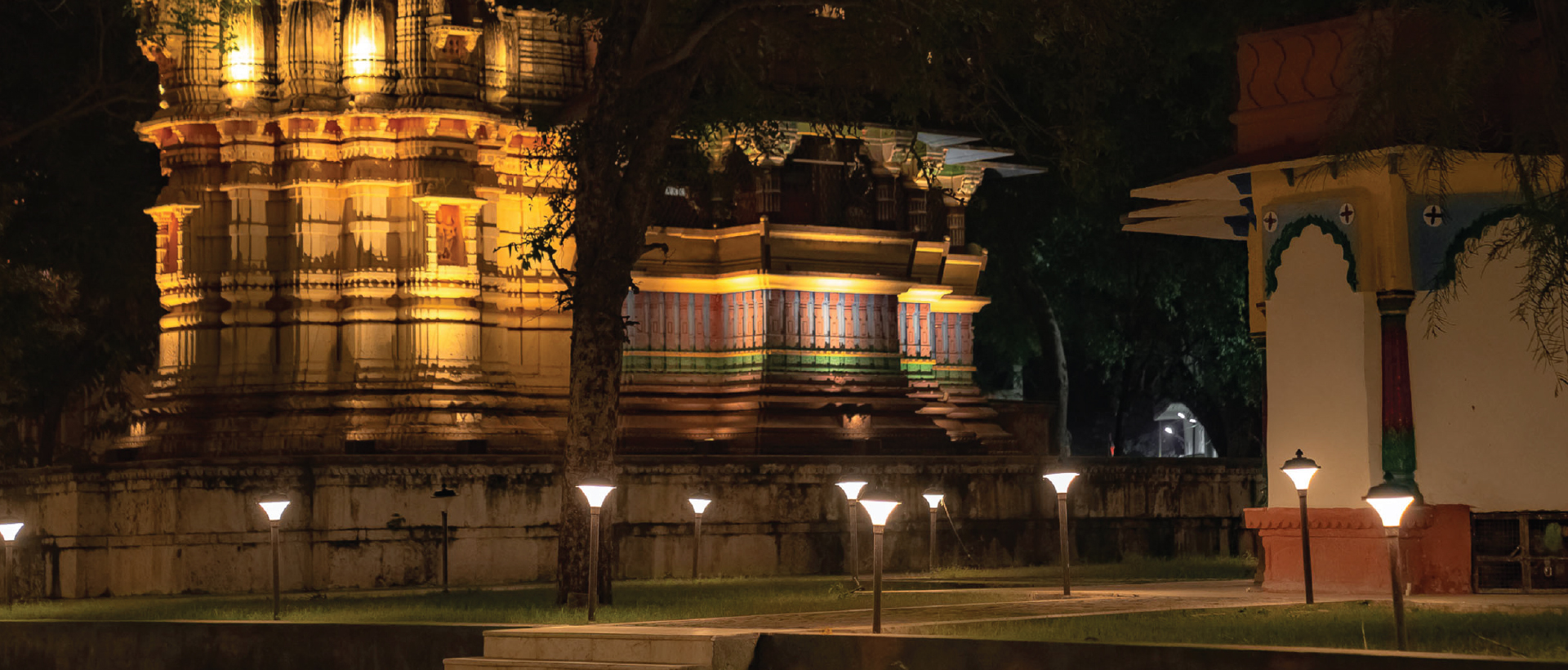

Illuminating parks, Gardens, commercial complex, Residential, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

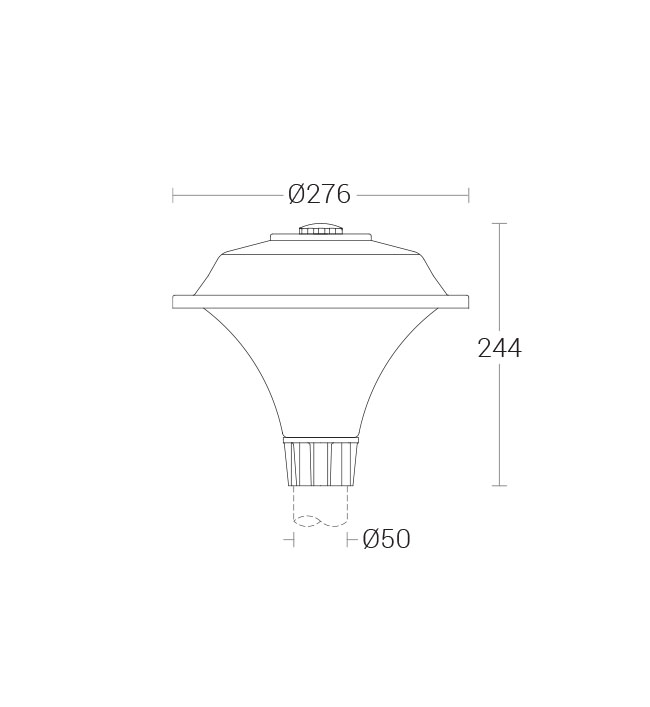

2179612W LED, Translucent AcrylicØ276 x 244mmD1
21796.pdf
