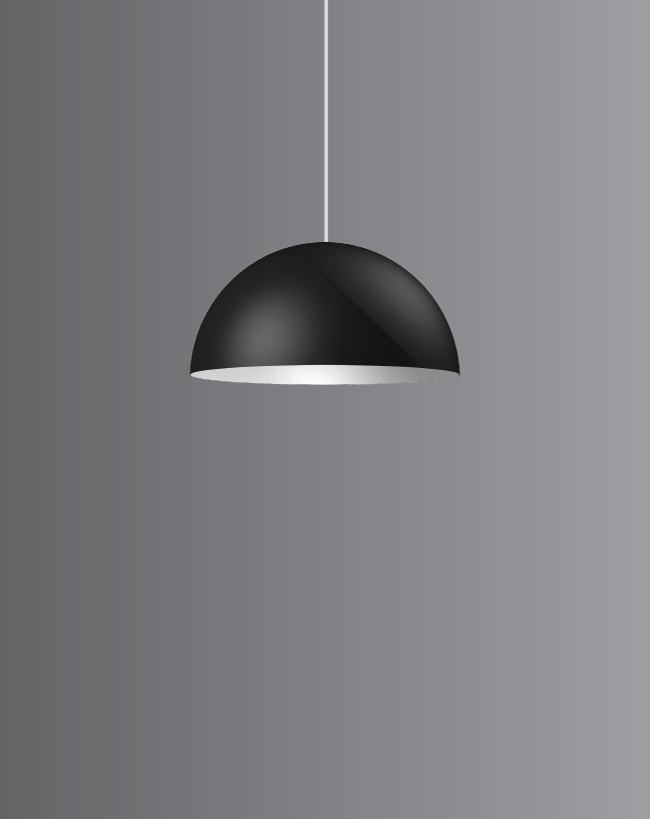

Magnum
"Magnum" pendant luminaires are a perfect fit for varied indoor lighting applications. The spun aluminium housing is ideal for better thermal management. Elegantly designed fixture under the green lighting, energy efficient category.

Product Description
• Luminaire made of spun aluminium for better thermal management.
• UV stabilized translucent acrylic diffuser for excellent diffused lighting
experience throughout the life of the fixture.
• Die-cast aluminium ceiling mounting cup with stainless steel suspension kit (1 meter).
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22880-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K

Product Benefits
• Attractive high quailty housing.
• Visual comfort with maximum energy saving
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

Area of Application
Corporate Offices, Malls, Restaurants, Receptions, Corridors, Commercial & Business Centers.

Available Finish
Epoxy polyester powder coating Black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

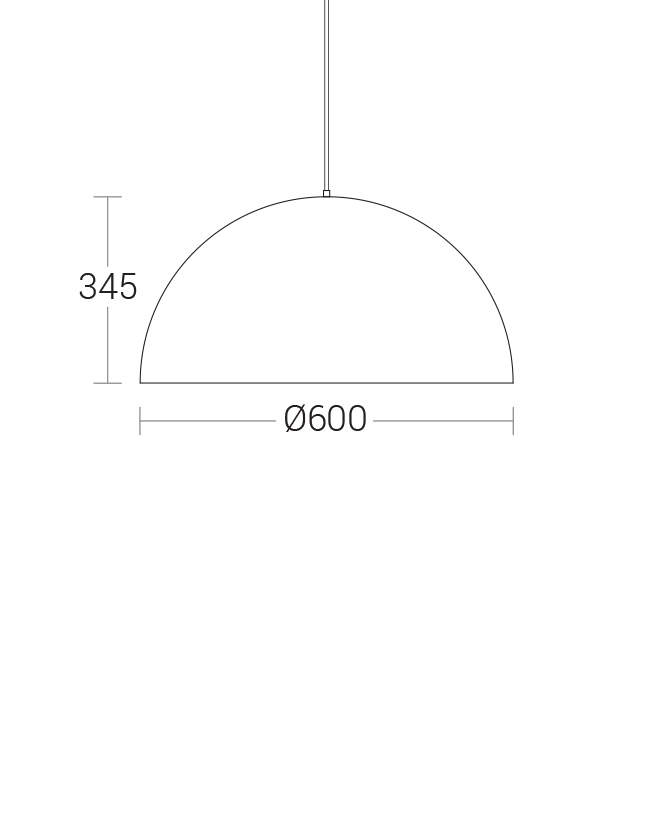

2288036W LED 3000K,4000K BA:120°, Translucent AcrylicØ600 x 345mm22880.pdf
22881E27 HolderØ600 x 345mm22881.pdf
